Zui big valve wholesale base in Henan area

Sewage ball valve >>>Back
Overview:
The company designed the overall high temperature ball valve is a new type of sealing material for the valve seat, the ball valve sealed by the same product PTFE, the service life has increased by 3-5 times. It has the advantages of stable performance, reliable sealing, small friction, light switch, high temperature resistance, wear resistance, oil resistance, corrosion resistance and long service life. "Roland" brand high temperature ball valve and globe valve, plunger valve, sewage valve, structure length In line with the expansion of the use of ball valves, widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, can replace the stop valve, plunger valve, fast drain valve. Applicable medium: water, steam, heat transfer oil and other acids, use temperature: ≤350 °C
Performance parameters:
model
Nominal pressure
(MPa) 		Strength test pressure
(MPa) 		Seal test pressure
(MPa) 		proper temperature
(°C) 		Applicable medium
QP41M/F -16C 1.6 2.4 1.8 -28~+300 (M/F) Heat transfer oil, water, steam, gas, oil, nitric acid corrosive medium, acetic acid corrosive medium
QP41M/F -16C 2.5 3.8 2.8 -28~+350 (PPN)
Main parts and materials:
Serial number Part name material
1 Valve body Ductile iron, carbon steel, cast stainless steel
2 Seal ring (M/F) high-strength wear-resistant carbon graphite ≤300°C (PPN) to polyphenylene, temperature ≤350°C
3 ball stainless steel
4 filler PTFE
5 Packing gland QT450-10 ductile iron
6 Valve stem Carbon steel, chrome stainless steel
7 handle Carbon steel
The main technical parameters:
model specification size
L D D 1 D 2 Z-φd H b
QP41M/F -16 15 130 95 65 45 4-14 85 14
20 150 105 75 55 4-14 95 16
25 160 115 85 65 4-14 103 16
32 180 135 100 78 4-18 105 18
40 200 145 110 85 4-18 120 18
50 230 160 125 100 4-18 195 20
65 290 180 145 120 4-18 195 20
80 310 195 160 135 8-18 215 twenty two
100 350 215 180 155 8-18 253 twenty four

Structural characteristics and principle of action:
The ball and seal ring of this type of valve adopt special processing technology and new sealing material of Zui, which makes the surface roughness and roundness of the ball meet the standard requirements, thus improving the sealing performance, service life and high temperature resistance.
The clockwise handle moves the valve stem to drive the ball to rotate, allowing the medium to pass smoothly.

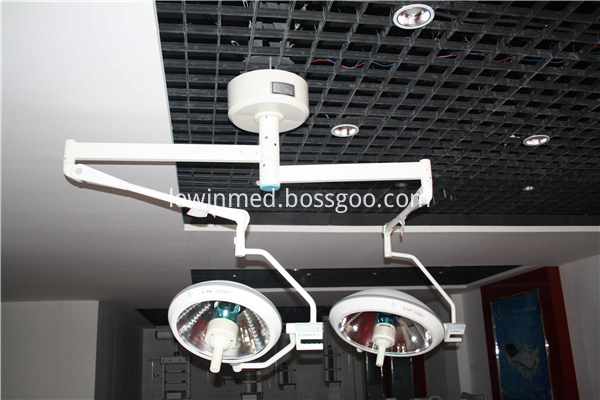

Double Dome Halogen Operating Lamp very matured in our products series, maintainance rate is very low;the surgical lamp has perfect cold light effect; this type ot lamp has excellent lighting depth can be 1200mm;it also has excellent color temperature control;The Halogen operation lamp adopt streamline lamp body design; halogenoperating lamp with reflector system designed in CAD; color temperature close to that of sunlight; making the tissue surface visible under natural color; depth of tubular light beams up to over 1200mm; uniform illumination effectively eliminating shadows under any circumstance
