What should I pay attention to when installing the Jingchuan Vortex Steam Flow Meter in Xiamen? What are the installation requirements?
Steam vortex flowmeter can be used for large, medium and small pipelines for water supply and drainage, sewage treatment, industrial recycling, oil and chemical reagents, as well as compressed air, saturated and superheated steam, natural gas and various medium flows. The transmitter is used in an automated control system. Today we mainly introduce the installation requirements of the vortex flowmeter, hoping to help users better apply the product.
For larger loads, such as shingles, gypsum board, insulation slabs, MDF or Gypusm boards, corrugated sheets and wood boards, proper load containment can be a real challenge. Choosing the right type, size, and thickness of the stretch mask and how it is applied is critical to ensure that the load will withstand the static and dynamic forces of handling, effects and vibrations caused during transport.
Keywords: Vortex steam flowmeter, steam vortex flowmeter, Fujian steam flowmeter, steam flowmeter manufacturer (Xiamen Jingchuan Automation Technology Co., Ltd.)

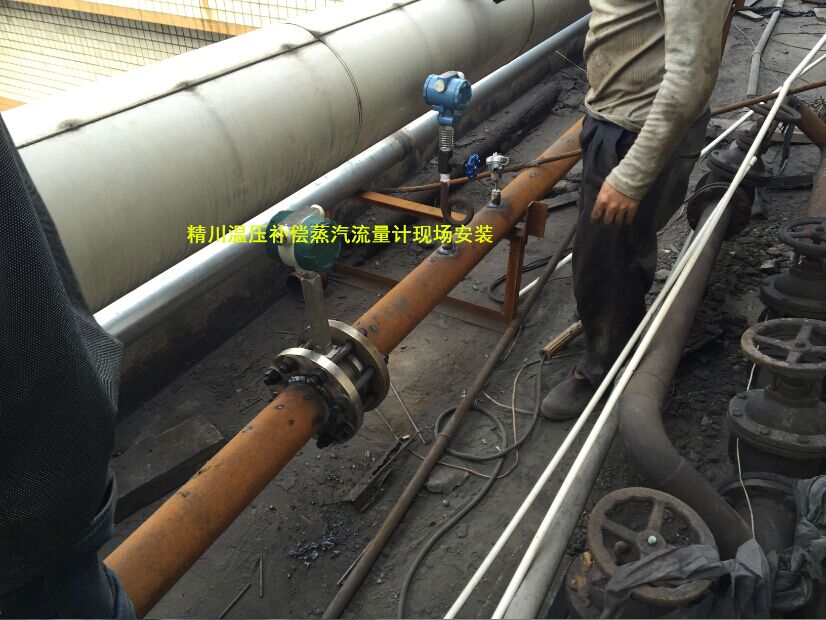

Installation requirements for vortex flowmeter
1. Reasonably choose the installation site and environment. Avoid strong power equipment, high-frequency equipment, strong power switch equipment; avoid the influence of high-temperature heat source and radiation source, avoid strong vibration places and strong corrosive environment, etc., and consider installation and maintenance.
Large or wide load differential stability is still a pain point in the supply chain, in transit and storage," Mark Wolschlag, Rachmeier said. "There is absolutely a need for lateral and longitudinal retention to prevent peaking and filling, packaging Loose, broken, water hazards or other types of contamination in these situations.
2. There must be enough straight pipe sections in the upstream and downstream. If there are two 90s on the same plane upstream of the sensor mounting point. Elbows: upstream straight pipe section ≥25D, downstream straight pipe section ≥5D.
If there are two 90s on the different planes upstream of the installation point of the vortex flowmeter. For elbows, the upstream straight pipe section is ≥40D, and the downstream straight pipe section is ≥5D. The regulating valve should be installed outside the 5D downstream of the sensor. If it must be installed upstream of the sensor, the straight pipe section upstream of the sensor should be no less than 50D, and the downstream should be no less than 5D.
3. The piping on the upstream and downstream of the installation point should be concentric with the sensor, and the coaxial deviation should be no less than 0.5DN.
4. The pipeline adopts measures to reduce vibration. The sensor should be avoided as far as possible on the pipe with strong vibration, especially lateral vibration. If it is necessary to install, vibration damping measures must be taken. Pipe fastening devices are installed at the upstream and downstream 2D ​​of the sensor, and anti-vibration pads are added.
5. Installation on a horizontal pipe is a common installation method for the flow sensor zui. When measuring the gas flow rate, if the measured gas contains a small amount of liquid, the sensor should be installed at a higher point in the pipeline. When measuring the liquid flow rate, if the measured liquid contains a small amount of gas, the vortex flowmeter should be installed at the lower part of the pipeline.
Rachmeier's multi-FleXL stretch hood machine provides the necessary protection and forces even a stable zui challenging load. The machine pack loads from 500 x 500 mm, up to 3200 long x 1700 wide mm, and a large height of 3000 mm. It can be automatically switched with up to four different film sizes to be constructed and set to size to provide enhanced flexibility and perfect fit for each load. Ending the load to 150 for an hour, depending on the size and height of the product, multiple FleXL further provides fast and accurate results.
6. The sensor is installed in a vertical pipe. When measuring gas flow, the sensor can be mounted on a vertical pipe with unlimited flow. If the gas to be measured contains a small amount of liquid, the gas flow should be from bottom to top. When measuring the flow of liquid, the flow direction of the liquid should be from bottom to top: this does not add extra weight to the probe.
7. The sensor is mounted on the side of the horizontal pipe. Regardless of the fluid being measured, the sensor can be mounted sideways on a horizontal pipe, especially for superheated steam, saturated steam and cryogenic liquids. If conditions allow the side to be installed, the temperature of the fluid has less effect on the amplifier.
8. Vortex flowmeter in the horizontal pipe is flipped. This installation method is generally not recommended. This method of installation is not suitable for measuring general gases and superheated steam. It can be used to measure saturated steam and is suitable for measuring high temperature liquids or when cleaning pipes frequently.
9. The sensor is installed on the pipe with insulation. When measuring high temperature steam, the insulation layer should not exceed one third of the height of the bracket.
